Industrial-Grade Cleaning Flagship
Engineered for powerful, autonomous cleaning across spacious venues such as warehouses, malls, and transportation hubs.
play
https://www.orionstar.com/res/orics/down/ow001_20251215_8851546c96ace6af24da3aeb4cd611f0.webp

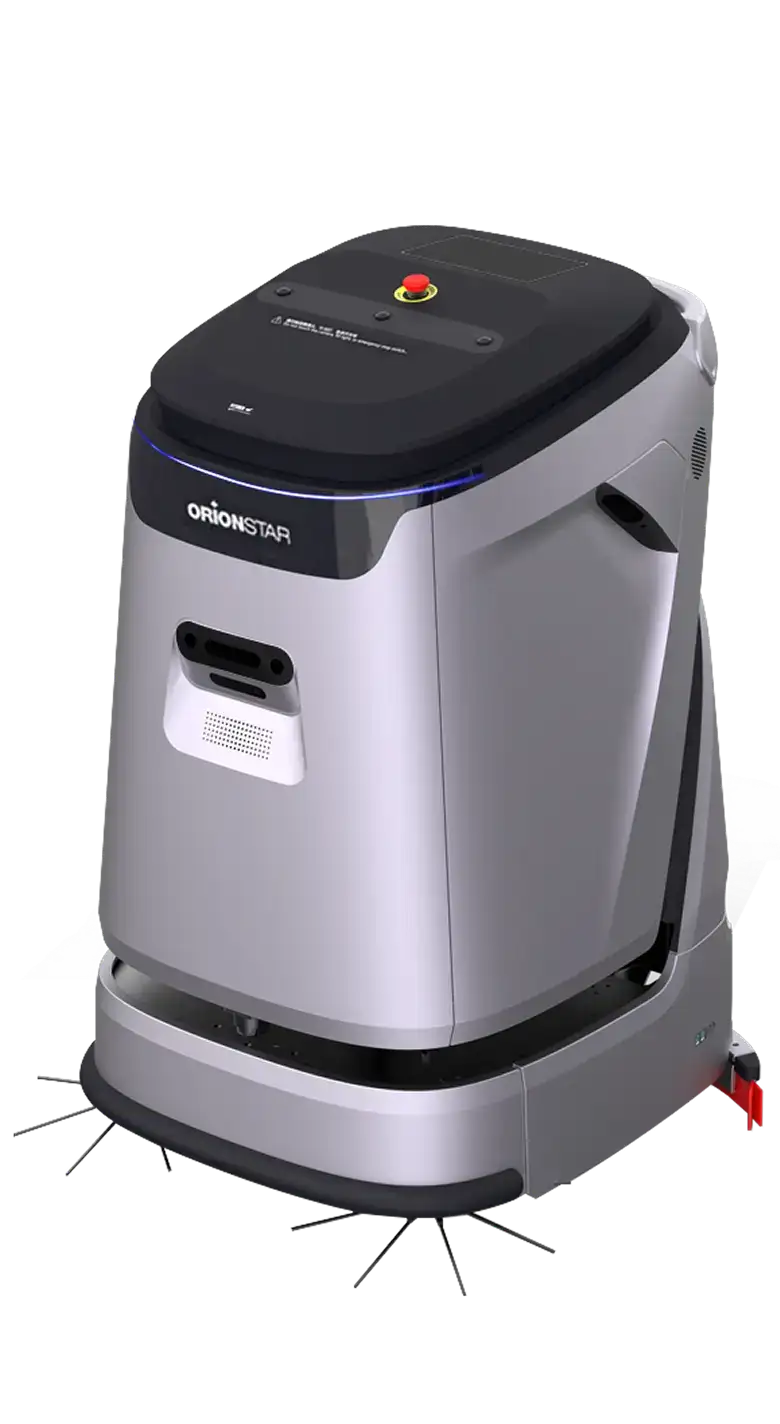

CleaniBot C5
CleaniBot C5 is a high-performance cleaning robot designed for medium-to-large environments. With a massive 1980 m²/h cleaning efficiency, a 90L water tank system, and 25kg of downward scrubbing pressure, it effortlessly removes stubborn oil stains and grime. Built with durable components and paired with a smart self-cleaning workstation, C5 delivers reliable, autonomous operation suitable for warehouses, campuses, commercial facilities, and transportation spaces.
90L
Extra-Large Water Tank
25kg
Ground Pressure
550mm
Washing Width
95%
Dirt Cleaning Rate
4min
Waste Water Tank Self-Cleaning
1980m²/h
Max Cleaning Efficiency
10000h
Fan Lifespan
3h
Scrubbing Runtime
Key Highlights
Heavy-Pollute One-Pass Cleaning
25kg ground pressure to tackle heavy oil and stubborn stains
Heavy-Pollute One-Pass Cleaning
Maximum Efficiency
Cleans up to 1980 m²/h with a 550mm washing width
Maximum Efficiency
Fully Autonomous Operation
Automatic charging, water refilling, and sewage discharge
Fully Autonomous Operation
Durable, Long-Life Design
High-spec components with a fan lifespan of up to 10,000 hours
Durable, Long-Life Design
Heavy-Pollute One-Pass Cleaning
Built for industrial grime. Features 25kg of downward scrubbing pressure and a Dual-Rolling Brush system that cleans heavy oil and stubborn stains in a single pass (Debris removal efficiency > 95%).
Maximum Efficiency
With a cleaning speed of 1980 m²/h and a huge 90L water tank, C5 reduces downtime. Its “Cloud Learning” optimizes paths automatically for the most efficient route.
Maximum Efficiency

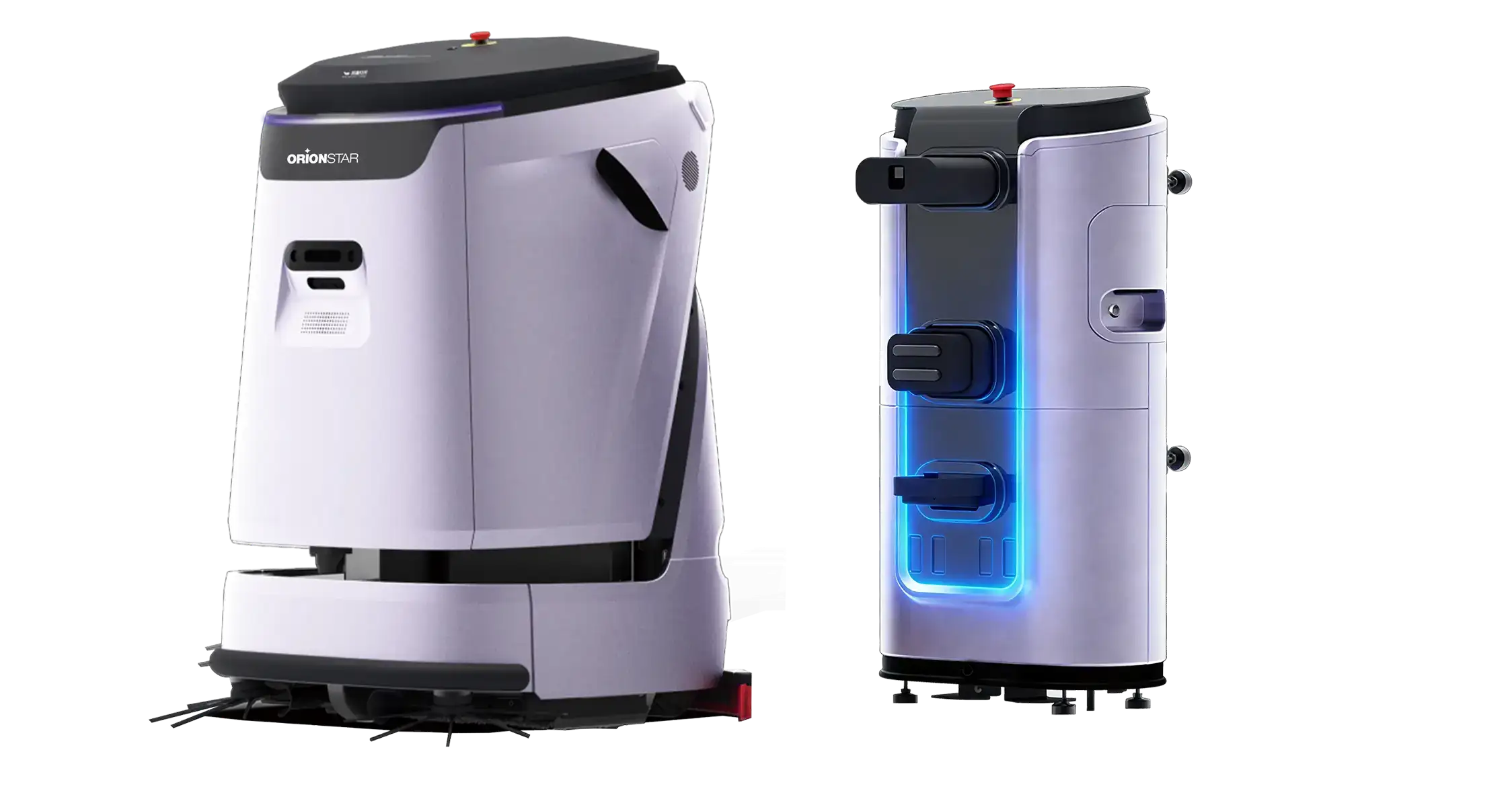

Fully Autonomous
Operation
A dedicated workstation enables automatic clean-water refilling, wastewater discharge, and high-pressure internal tank rinsing. Supports 1.5-hour fast charging for rapid turnaround.
Fully Autonomous<br/>Operation
Autonomous Resupply
Autonomous Resupply
Automatic Charging, Water Filling & Draining
Self-Cleaning
Self-Cleaning
Automatic Tank Cleaning Post-resupply to Prevent Debris Accumulation and Odor, Reducing Maintenance Frequency
High Adaptability In Deployment
High Adaptability In Deployment
Optional Mobile Water Tank, No Plumbing Modification Required, Easy to Deploy and User-friendly

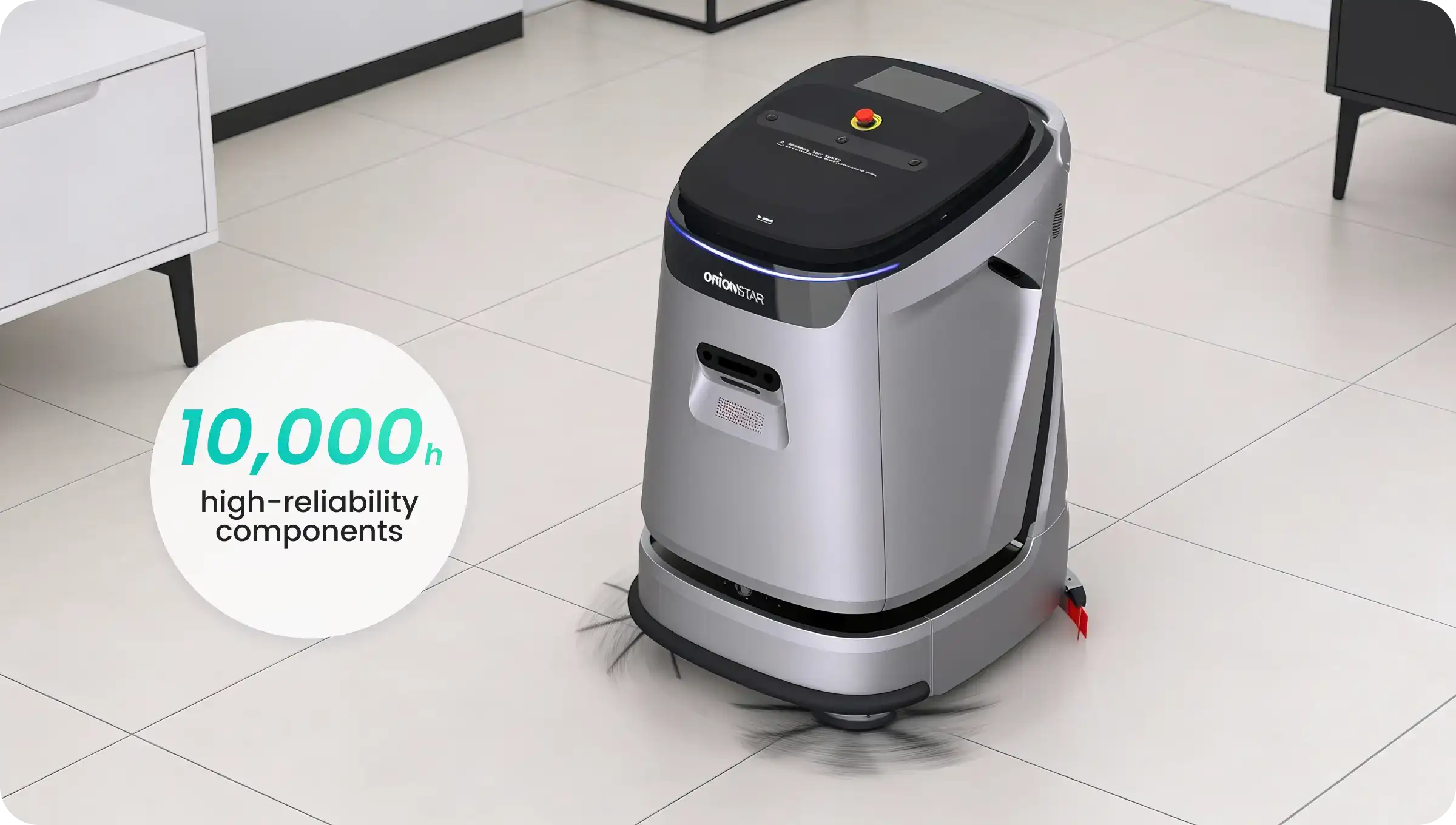

Durable, Long-Life Design
Constructed with high-reliability components, including a 10,000+ hour fan and dual-redundancy safety architecture for stable long-term performance.
Durable, Long-Life Design
Multi-scenario application

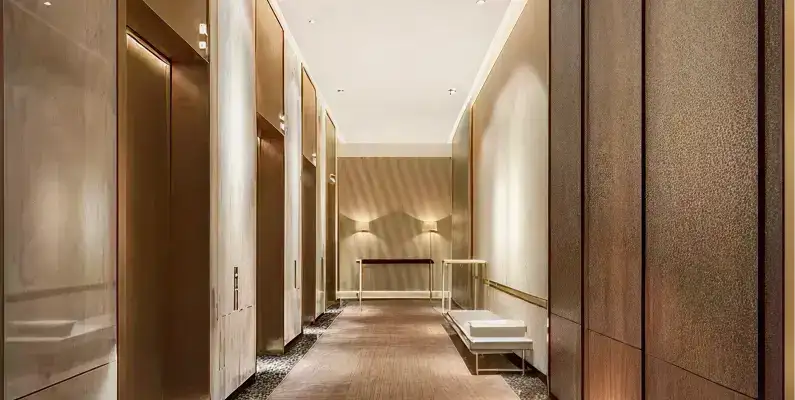

Hospitality
Hospitality

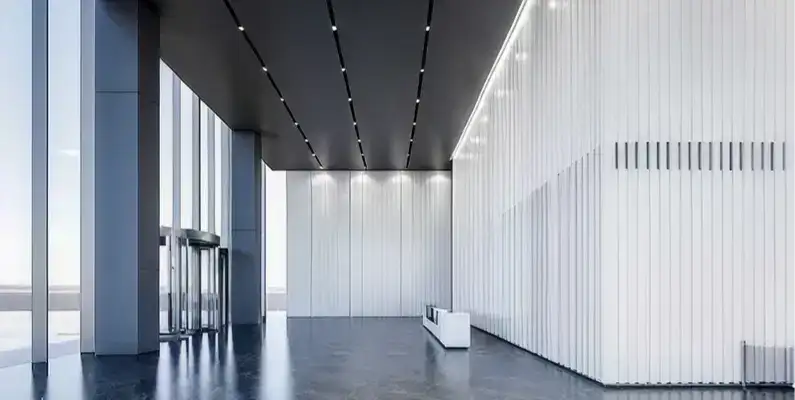

Office Building
Office Building

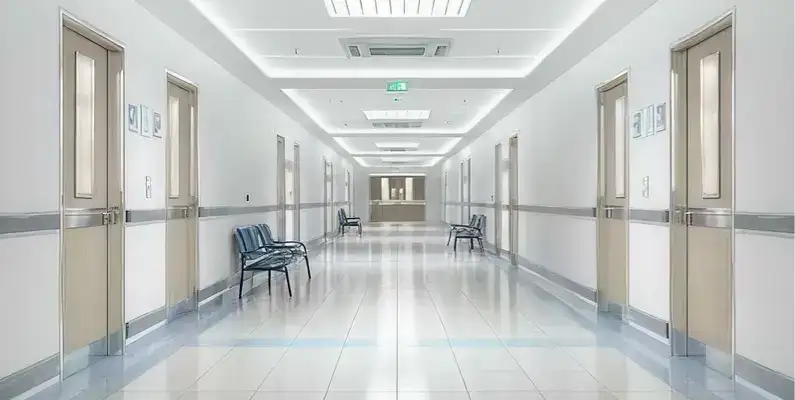

Hospital
Hospital
Shopping Mall
Shopping Mall

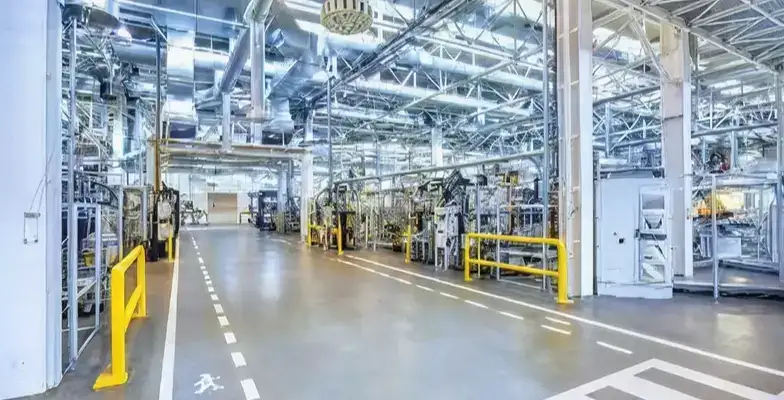

Factory
Factory

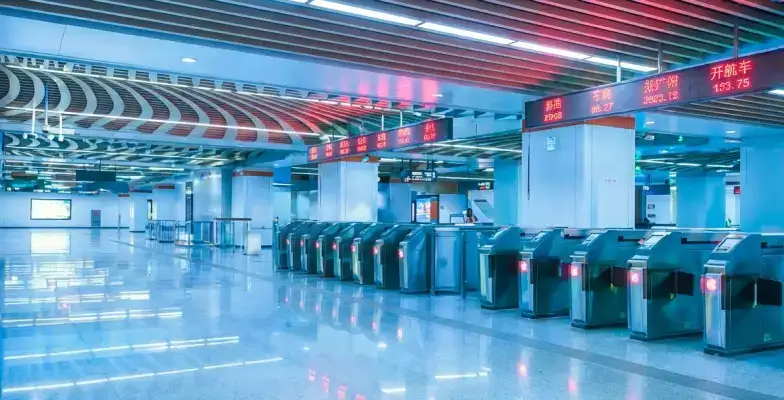

Transportation
Transportation
SPECIFICATION
SPECIFICATION
General Parameters
Dimensions (LWH)
820 x 680 x 1130 mm
Net Weight
170 Kg
Max. Operating Speed
1.2 m/s
Max. Obstacle Climbing
15 mm
Max. Gradeability
Loaded: 5° / Empty: 8°
Min. Passing Width
880 mm
Noise Level
< 68 dB(A)
Battery Specification
24V, 80Ah
Cleaning Performance
Charging Time
1.5 h
Battery Life (Operating Time)
Scrubbing: 3h; Mopping: 8h
Cleaning Width (main brush)
550 mm
Max. Cleaning Efficiency
1980㎡/h
Clean Water Tank Capacity
45 L
Waste Water Tank Capacity
45 L
Maximum Garbage Height
3cm
Dust Bin Capacity
1.8 L
Additional Features
Auto Recharge
Supported
Network Connectivity
Wi-Fi / 4G/Lora
Cleaning Modes
Scrubbing, Dust Mopping, Water absorption
Water Station
Supported
Docking Station
Station Water Tank Capacity
8 L
Water Refilling Speed
7-10 L/min
Sewage Discharge Speed
10-15 L/min
Max. Power Consumption
1800 W
Rated Input Voltage
200-240 V
