Industrial and commercial facilities face a persistent challenge: maintaining large floor areas clean, safe, and presentable while controlling labor costs and ensuring consistent quality. Traditional manual cleaning methods are labor-intensive, inconsistent, and difficult to scale across sprawling warehouses, factories, and logistics centers. OrionStar's CleaniBot C5 addresses these challenges head-on with a heavy-duty autonomous floor-scrubbing robot designed specifically for demanding indoor environments.
This article explores the CleaniBot C5's core capabilities, technical specifications, operational advantages, and the real-world value it brings to facility managers seeking to modernize their cleaning operations.
The CleaniBot C5 is engineered for medium-to-large commercial and industrial settings. Its robust design features dimensions of approximately 820 x 680 x 1,130 mm and a net weight of 170 kg, ensuring stability during intensive scrubbing operations. The machine is purpose-built to handle environments that would challenge smaller or lighter cleaning equipment.
At the heart of the C5's cleaning performance is a 550 mm main brush system that delivers a maximum cleaning area capacity of up to 1,980 m² per hour. This makes it suitable for large-scale facilities where coverage speed directly impacts operational efficiency. The dual-rolling-brush system applies 25 kg of downward scrubbing pressure, enabling effective removal of heavy oil, grime, and stubborn stains in a single pass, with a reported dirt-cleaning rate of approximately 95%.
The C5 supports three distinct cleaning modes: scrubbing, dust-mopping, and water absorption. This versatility allows the robot to sweep, scrub, and vacuum or mop in a single cycle, eliminating the need for multiple machines or sequential passes. The robot can also pick up debris up to about 3 cm in height and includes a 1.8 L dust bin for dry waste collection.
One of the most significant operational advantages of the CleaniBot C5 is its large-capacity water tank system. With a combined 90 L capacity (45 L clean water and 45 L wastewater), the robot can operate for extended periods without requiring frequent refills or wastewater disposal. This dramatically reduces downtime and allows cleaning to proceed uninterrupted across large floor areas.
The C5 is powered by a 24 V, 80 Ah battery that provides approximately 3 hours of scrubbing runtime and up to 8 hours of mopping runtime. Fast charging support allows the battery to recharge in roughly 1.5 hours, minimizing the robot's downtime between cleaning shifts.

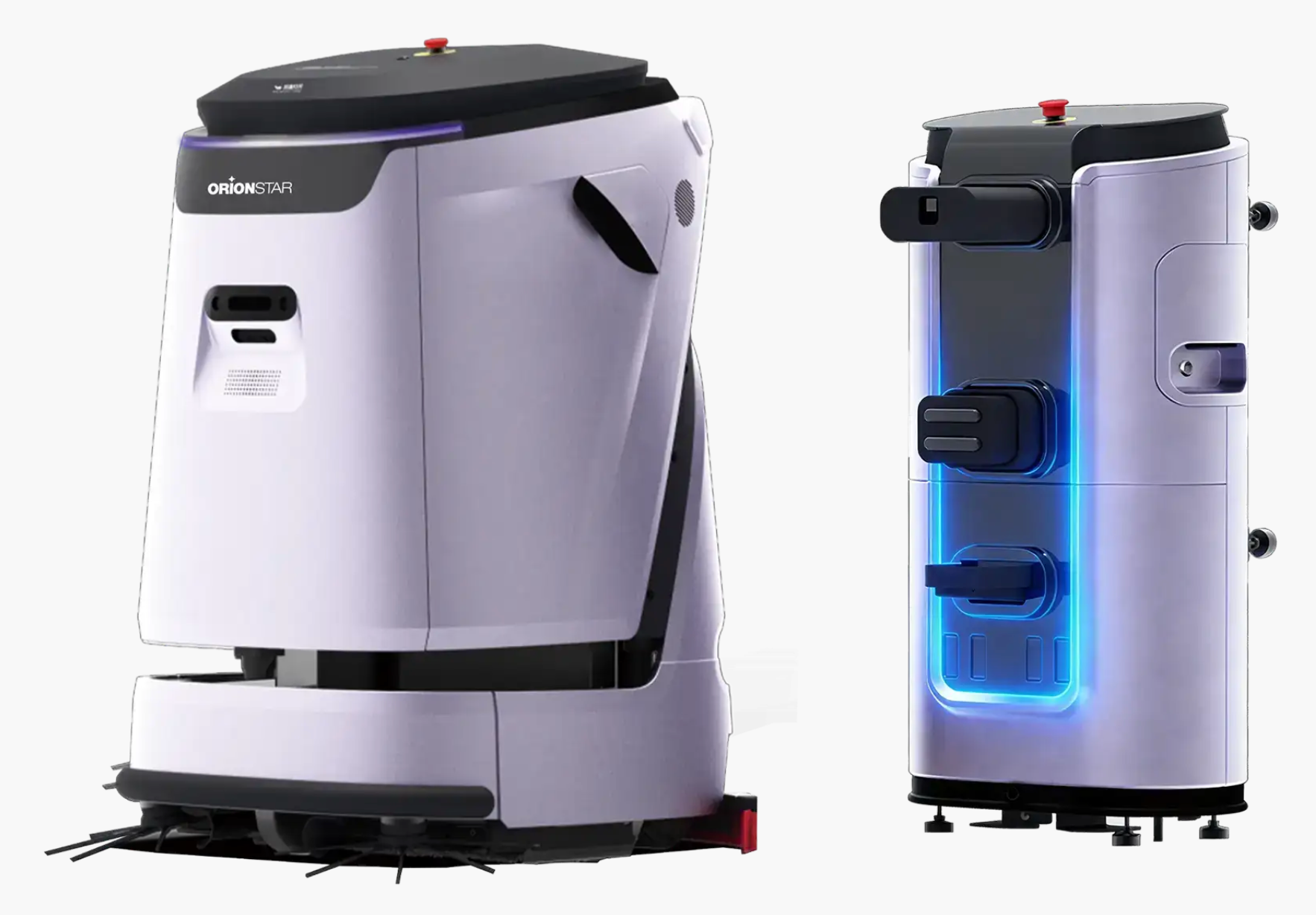

The fully autonomous docking station is a standout feature. When the robot's battery runs low or the water tank needs servicing, it automatically returns to its workstation. The station handles automatic clean-water refilling, wastewater discharge, and high-pressure internal tank rinsing. The wastewater tank can self-clean in roughly 4 minutes, helping to prevent odor and blockages that often plague conventional cleaning equipment. This level of automation means the C5 can support continuous multi-shift operations in large venues with minimal human intervention.
The CleaniBot C5 employs a sophisticated navigation and obstacle-avoidance system. It can map an area of up to 10,000 m², plan optimal cleaning paths using Cloud Learning-style optimization, and adapt its cleaning patterns based on the environment's layout. The robot maintains a maximum operating speed of about 1.2 m/s and can climb obstacles up to 15 mm in height, managing slopes of up to 5 degrees when loaded and 8 degrees when unloaded.
Safety is a primary consideration in the C5's design. Multiple sensors and a smart obstacle-avoidance system ensure safe operation around people, equipment, and infrastructure. With a minimum passing width of approximately 880 mm, the robot can navigate through typical corridors and doorways without difficulty. Its noise level of less than 68 dB(A) makes it suitable for use in busy public spaces during operating hours without causing excessive disturbance.
The CleaniBot C5 is particularly well-suited for a range of demanding environments:
The CleaniBot C5 delivers significant long-term value through reduced labor workload, predictable cleaning schedules, and durable design. The fan system, for example, is rated for over 10,000 hours of continuous operation. Flexible deployment options include optional mobile water tanks that eliminate the need for building plumbing modifications, making the C5 suitable for facilities of varying ages and configurations.
By automating the most physically demanding cleaning tasks, the C5 not only improves cleaning consistency but also allows facility teams to focus on higher-value maintenance activities. For facility managers looking to reduce operational costs while improving cleanliness standards, the CleaniBot C5 represents a compelling investment in cleaning automation technology.
The CleaniBot C5 can clean up to 1,980 m² per hour, making it suitable for large industrial and commercial environments.
The C5 provides approximately 3 hours of scrubbing runtime and up to 8 hours of mopping runtime. It supports fast charging of about 1.5 hours to full charge.
No. The C5's docking station can be installed with optional mobile water tanks, eliminating the need for building plumbing modifications. The robot has a combined 90 L water tank capacity for extended operation.
Yes. The C5 features 25 kg of downward scrubbing pressure with a dual-rolling-brush system, enabling effective one-pass removal of heavy oil, grime, and stubborn stains with a reported cleaning rate of about 95%.
The C5 uses multiple sensors and a smart obstacle-avoidance system to navigate safely around people, equipment, and infrastructure. It can map up to 10,000 m² and climb obstacles up to 15 mm high.
The C5 operates at less than 68 dB(A), making it suitable for use in busy public spaces without causing excessive noise disturbance.
Yes. The C5 automatically returns to its docking station for recharging, clean-water refilling, wastewater discharge, and self-cleaning of the wastewater tank. The tank self-cleans in roughly 4 minutes.
The C5 is ideal for factories, logistics warehouses, shopping malls, hospitals, transportation hubs, large hospitality venues, and any medium-to-large commercial or industrial indoor environment requiring heavy-duty floor cleaning.
